Crank the World: Playdate demo

Posted on
#demos

You know Playdate, the cute yellow console with a crank? I think I saw it in person last year via Inês, and early this year they started to have Lithuania as a shipping destination, so I got one. And then what would I do with it? Of course, try to make a demoscene demo :)

First impressions

The device is cute. The SDK is simple and no-nonsense (see docs). I only used the C part of SDK (there’s also Lua, which I did not use). You install it, as well as the official gcc based toolchain from ARM, and there you go. SDK provides simple things like “here’s the bitmap for the screen” or “here’s which buttons are pressed” and so on.

The hardware underneath feels similar to “about the first Pentiums” era - single core CPU at 180MHz (ARM Cortex-M7F), with hardware floating point (but no VFP/NEON), 16MB RAM, there’s no GPU. Screen is 400x240 pixels, 1 bit/pixel – kinda Kindle e-ink like, except it refreshes way faster (can go up to 50 FPS). Underlying operating system seems to be FreeRTOS but nothing about it is exposed directly; you just get what the SDK provides.

At first I tried checking out how many polygons can the device rasterize while keeping 30 FPS:

But in the end, going along with wise words of kewlers and mfx, the demo chose to use zero polys (and… zero shaders).

Packaging up the “final executable” of the demo felt like a breath of fresh air. You just… zip up the folder. That’s it. And then anyone with a device can sideload it from anywhere. At first I could not believe that it would actually work, without some sort of dark magic ritual that keeps on changing every two months. Very nice.

By the way, check out the “The Playdate Story: What Was it Like to Make Handheld Video Game System Hardware?” talk by Cabel Sasser from GDC 2024. It is most excellent.

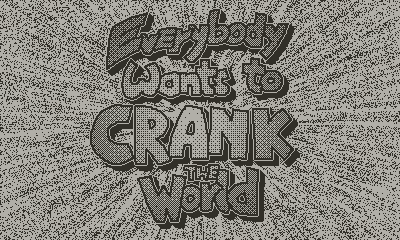

The demo

I wanted to code some oldskool demo effects that I never did back when 30 years ago everyone else was doing them. You know: plasma, kefren bars, blobs, starfield, etc.

Also wanted to check out how much of shadertoy-like raymarching could a Playdate do. Turns out, “not a lot”, lol.

And so the demo is just that: a collection of random scenes with some “effects”. Music is an old GarageBand experiment that my kid did some years ago.

Tech bits

Playdate uses 1 bit/pixel screen, so to represent “shades of gray” for 3D effects I went the simple way and just used a static screen-size blue noise texture (from here). So “the code” produces a screen-sized “grayscale” image with one byte per pixel, and then it is dithered through the blue noise texture into the device screen bitmap. It works way better than I thought it would!

All the raymarched/raytraced scenes are way too slow to calculate each pixel every frame (too slow with my code, that is). So instead, calculate only every Nth pixel each frame, with update pattern similar to ordered dithering tables.

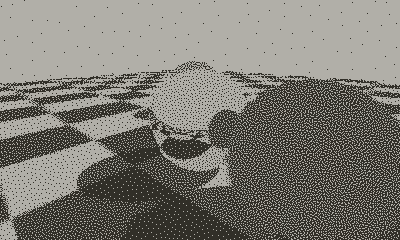

  • Raytraced spheres: update 1 out of 6 pixels every frame (in 3x2 pattern),

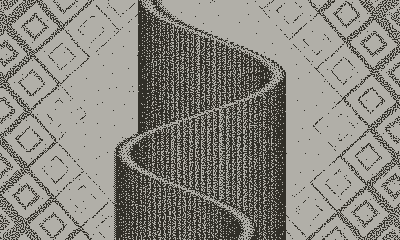

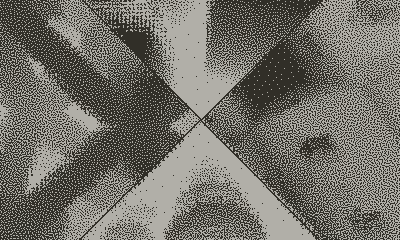

  • Raymarched tunnel/sponge/field: update 1 out of 4 pixels every frame (in 2x2 pattern), and run everything at 2x2 lower resolution too, “upscaling” the rendered grayscale image before dithering. So effectively, raymarching 1/16th the amount of screen pixels each frame.
  • Other simpler scenes: update 1 out of 4 pixels every frame.

You say “cheating”, I say “free motion blur” or “look, this is a spatial and temporal filter just like DLSS, right?” :)

For the raymarched parts, I tried to make them “look like something” while keeping the number of march iterations very limited, and doing other cheats like using too large ray step size which leads to artifacts but hey no one knows what is it supposed to look like anyway.

All in all, most of the demo runs at 30 FPS, with some parts dropping to about 24 FPS.

Size breakdown: demo is 3.1MB in size, out of which 3MB is the music track :) And that is because it is just an ADPCM WAV file. The CPU cost of doing something like MP3 playback was too high, and I did not go the MIDI/MOD/XM route since the music track comes from GarageBand.

Some of the scenes/effects are ripped off inspired by other shadertoys or demos:

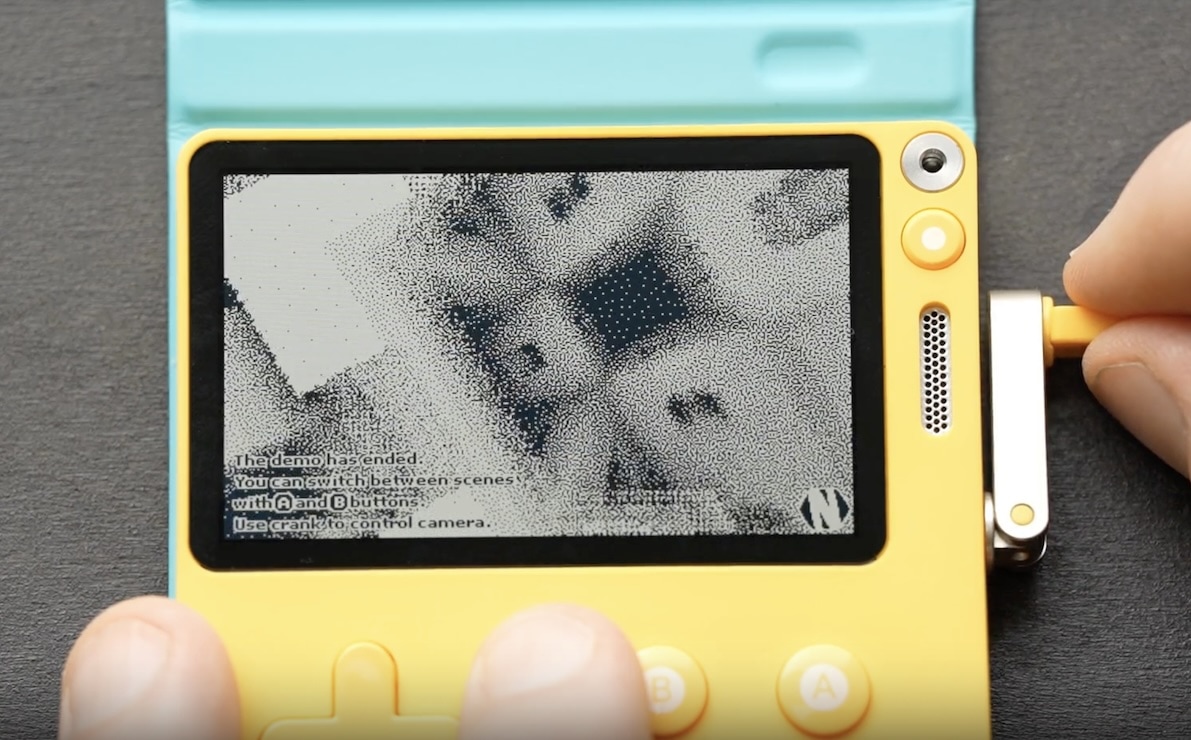

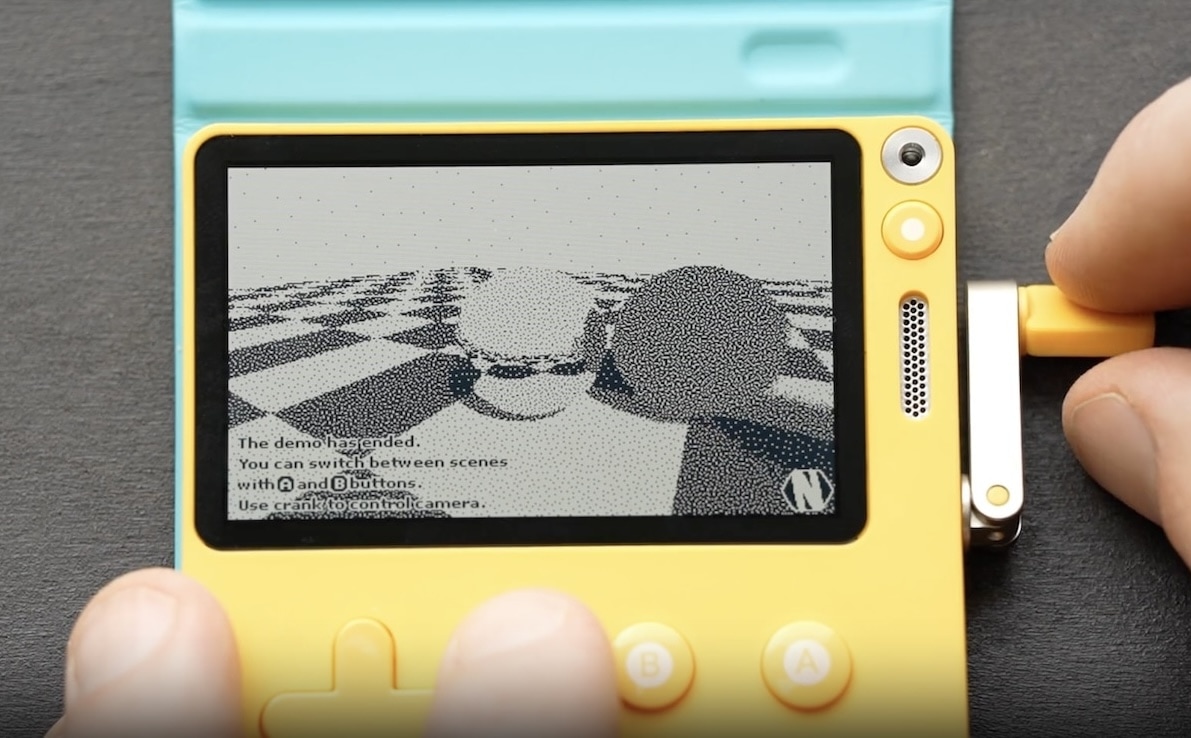

When the music finishes, the demo switches to “interactive mode” where you can switch between the effects/scenes with Playdate A/B buttons. You can also use the crank to orbit/rotate the camera or change some other scene parameter. Actually, you can use the crank to control the camera during the regular demo playback as well.

All in all, this was quite a lot of fun! Maybe I should make another demo sometime.
